GVM T12-XS Professional Constant Temperature Soldering Station for Mobile Phone BGA Rework

Features:

• Applicable to electronic maintenance, such as welding workshop of the electronic factory, electronic repair, mobile phone maintenance, etc

• Rapid heating,6 seconds of tin melting, and large and small solder joints are not difficult

• No need to disassemble the handle, disassemble and replace it in 2 seconds, bid farewell to cumbersome, plug-and-play, integrated design, efficient heat conduction, and temperature recovery, reduce heat loss, and easy to solder

• Automatic dormancy and standby can greatly prolong the life of the heating core save electricity and reduce potential risks

• LCD display, the temperature is intuitive and controllable at any time

• It comes with a cleaning copper wire ball and a heating core storage hole, and can also be used for placing and replacing welding heads to prevent loss and quickly replace and store

• Thermal insulation silicone cover, anti-scalding and non-slip, more secure to use

• 3 different temperatures can be preset according to their own work needs, which is convenient for various welding requirements; after selecting a certain gear, there is no need to wait, just pick up the handle to work

• Palm-sized, portable for business trips, solving the problem that traditional soldering stations are difficult to carry

• Can be matched with other types of soldering iron tips of 112 series according to your own needs

Specification:

• Brand: GVM

• Product Name: Mobile Phone Repair Constant Temperature Welding Station

• Model: Gvm T12-XS

• Net Weight: About 800g

• Gross Weight: About 1200g

• Product Size: 150*90*43mm

• Package Size: 195*160*105mm

• Temperature Range: 80~480°C

• Automatic Standby: Support

• Automatic Sleep: Support

• Voltage Range: AC 90~230V, 50/60Hz, 5A

• Peak Power: 72W

• Heating Method: Intelligent Pid Temperature Control

• Temperature Preset: 300/350/400°C

• Display Method: LCD Display

• Operating Temperature: 10-40°C/50-122°F

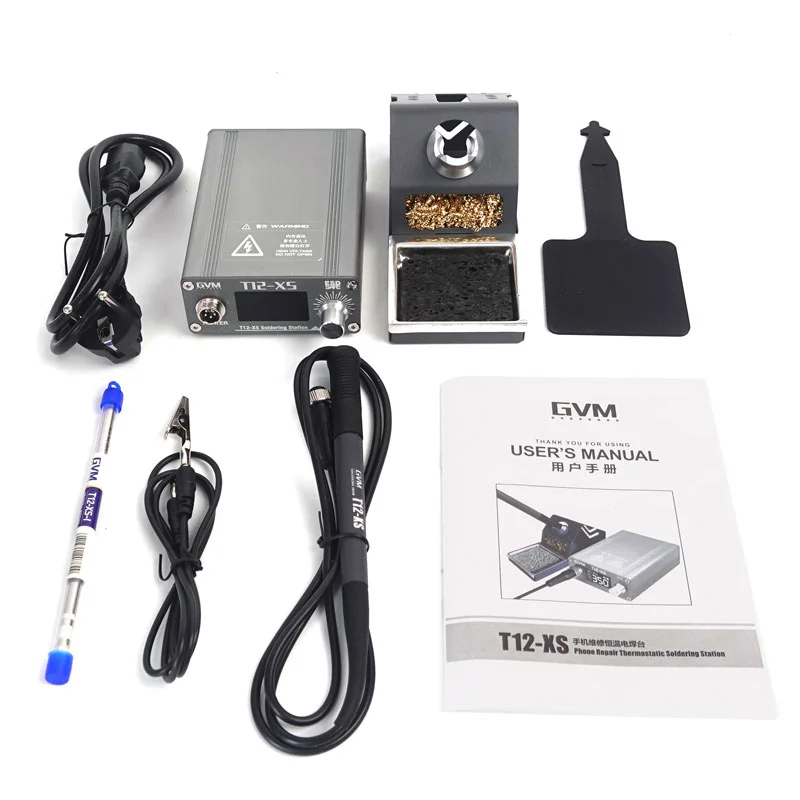

Package includes:

• 1 x Soldering station

• 1 x Soldering iron tip

• 1 x Cleaning sponge

• 1 x Copper wire ball

• 1 x Solder iron holder

• 1 x Silicone pad

• 1 x Soldering station handle

• 1 x Ground wire

• 1 x Power supply cable
