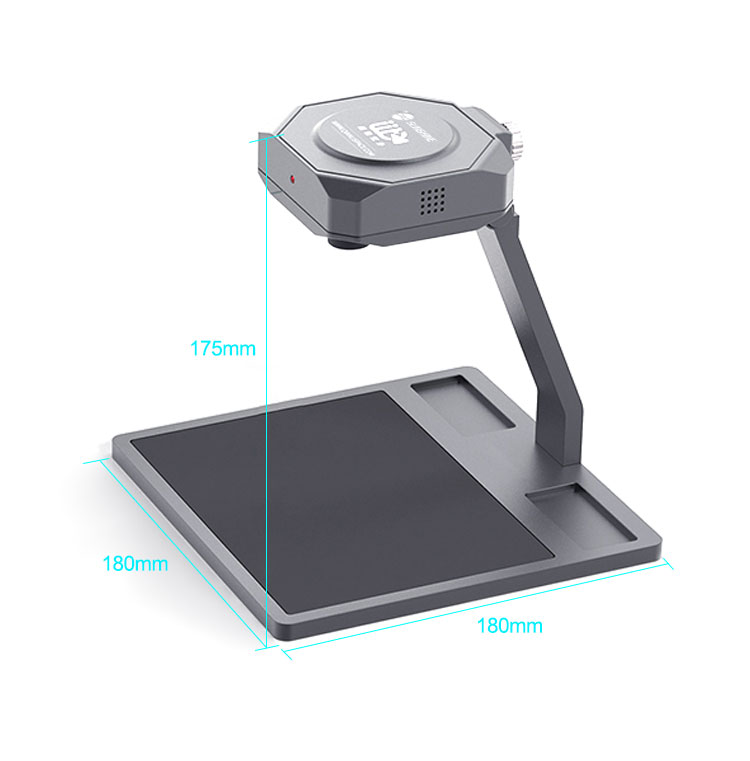

SUNSHINE TB-03 V2 Infrared Thermal Camera

TB-03 PCB Infrared imaging rapid diagnosis instrument

1.Professional motherboard testing equipment, bid farewell to the traditional complex motherboard testing methods, testing faster and more accurate.

2.Support the detection of all models/brands of mobile phone motherboards and other products with motherboards, etc.

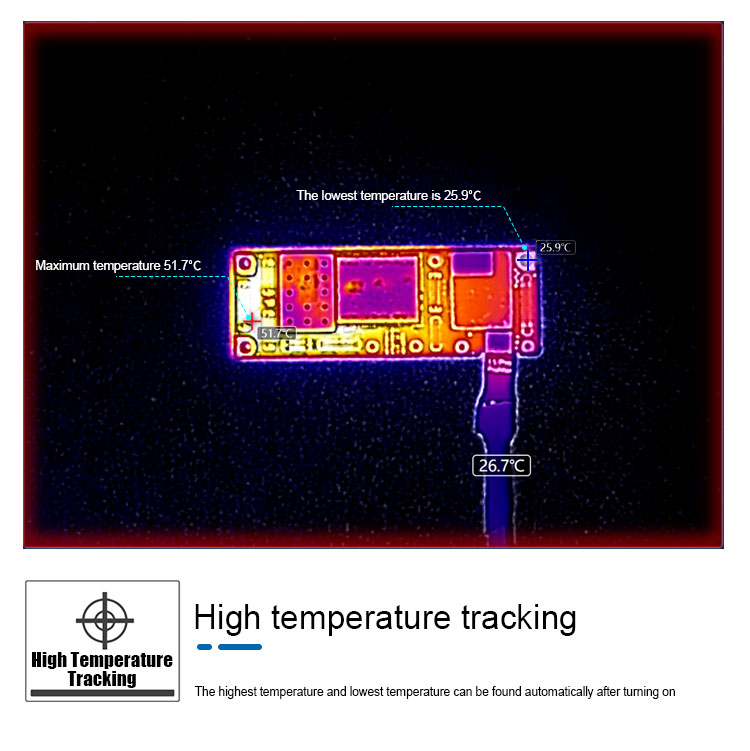

3.High contrast display,High temperature alarm,3 color modes, Precise positioning, Snapshot/Video, One-click quick check, Dual optical camera.

4.The infrared camera can easily detect the abnormal area of the motherboard, and the visible light camera can extract the outline of the motherboard, flexibly enlarge the details of the motherboard, and quickly and accurately detect the problem.

5.real-time monitoring.

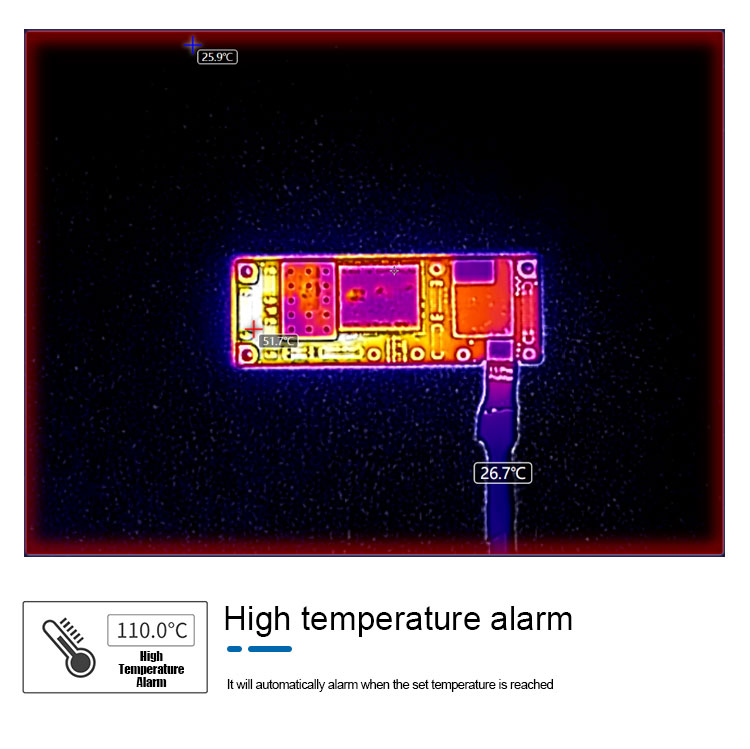

6.It is not only a short-circuit quick diagnosis instrument, but also an electron microscope, snapshot/video, can detect temperature alarm, temperature can be manually adjusted according to the situation, desoldering the motherboard can monitor whether the temperature reaches the melting point.

7.Accurately locate abnormal components.

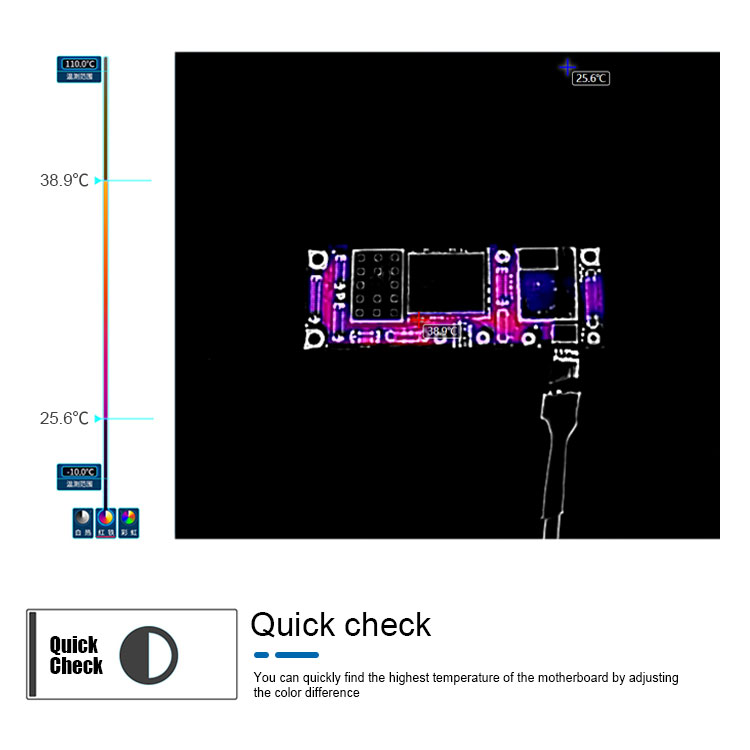

8.Use the SUNSHINE power cord to provide power to the motherboard, adjust the display mode to thermal imaging mode, and turn on the software quick check function to detect faulty parts.

9.Thermal imaging display: Iron oxide red, Rainbow, Incandescent .The thermal imaging display mode can be adjusted according to personal usage habits.
